High Chairs

Category: Accessories - Iron workers

TWR (2 heights per model)

Bag from 20 to 70
64 bags per pallet
Heights 3″ to 12.5″ in 1/2″ increments
Suitable for all rebar size

Description+

High Chairs are designed for strength. Two heights on the same rebar chair mean unrivalled versatility. Our High Chairs are the most robust of the market, being manufactured with a resin specially designed for their application. What's more, the lugs at the base of the High chairs are designed to leave no marks when the formwork is removed. The High chairs are often used in pair with our slab bolster. They serve to support a second or third row of rebars on your top slabs. Their unique shape makes work easier for users, they can easily be place through the Slab Bolster or other chairs reinforcement. This product ensures optimum concrete flow to help prevent voids or linear cracks in concrete.

The High chairs are available on heights from 3″ to 12.5″ in 0.5 " increments.

Additional information+

Quantity	Bag from 25 to 70
Height(s)	76 mm (3"), 89 mm (3.5"), 102 mm (4"), 113 mm (4.5"), 127 mm (5"), 140 mm (5.5"), 154 mm (6"), 166 mm (6.5"), 180 mm (7"), 192 mm (7.5"), 205 mm (8"), 218 mm (8.5"), 230 mm (9"), 243 mm (9.5")

See all products

List of available products:

Product	Height	Quantity per bag	Quantity per pallet
TWR-3035	3 - 3.5 in (76-90 mm)	70	4,480 pieces/pallet
TWR-4045	4 - 4.5 in (104-114 mm)	60	3,840 pieces/pallet
TWR-5055	5 - 5.5 in (127-140 mm)	50	3,200 pieces/pallet
TWR-6065	6 - 6.5 in (154-166 mm)	40	2,560 pieces/pallet
TWR-7075	7 - 7.5 in (180-192 mm)	30	1,920 pieces/pallet
TWR-8085	8 - 8.5 in (205-218 mm)	30	1,920 pieces/pallet
TWR-9095	9 - 9.5 in (230-243 mm)	25	1,600 pieces/pallet

Spacing between high chairs and sand slabs:

Products	Base 75	Base 1015	Base 2025	Base 3035	Base 4000
Tower 3035	30 mm	X	X	X	X
Tower 4045	55 mm	44 mm	X	X	X
Tower 5055	61 mm	51 mm	X	X	X
Tower 6065	62 mm	51 mm	25 mm	X	X
Tower 7075	62 mm	51 mm	25 mm	X	X
Tower 8085	66 mm	54 mm	29 mm	5 mm	X
Tower 9095	86 mm	75 mm	46 mm	25 mm	10 mm

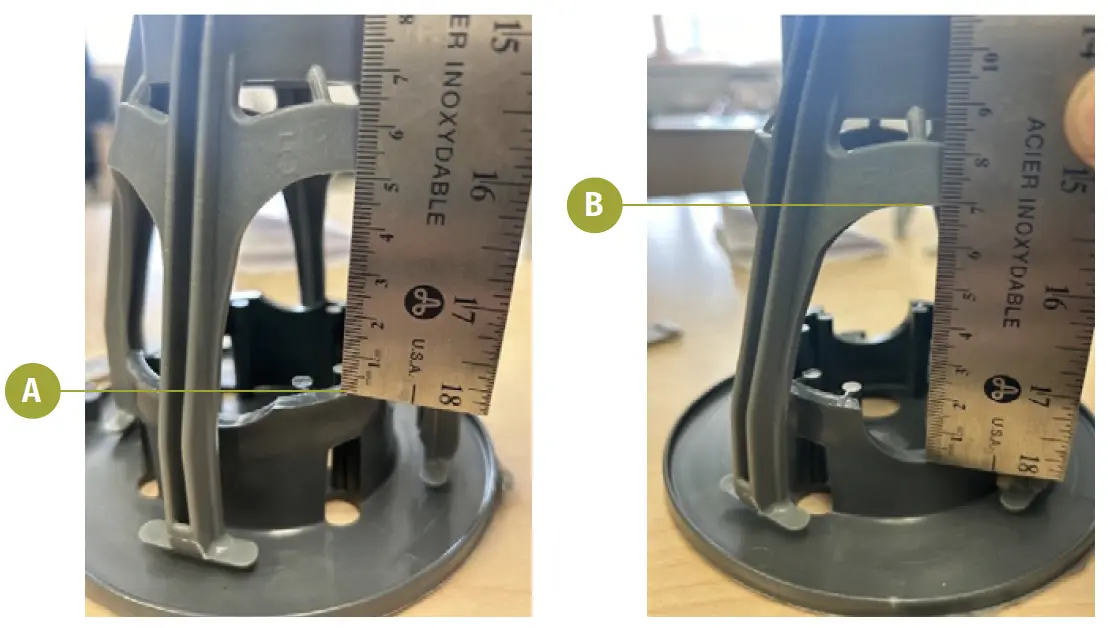

The calculated spacing is between the highest point of the base (A) and the lowest point of the tower (B).

If you're using the lowest space on the sand plate to place your rebar, add 17.5 mm to the spacing indicated in the table above.
